Description

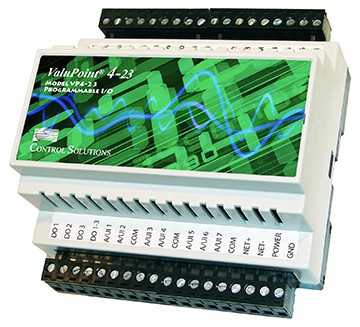

Control Solutions’ Model VP4-2310 ValuPoint® Smart I/O for Modbus RTU has 23 I/O points, and operates as a master or slave for I/O expansion, or as a controller with soft PLC capability. The ValuPoint® platform features 14 universal context sensitive inputs. When configured as an analog input, the continuously self-calibrating sigma-delta converter produces 15-bit resolution with high noise immunity. When configured as a discrete input, the converter switches to 10-bit resolution at 1,000 samples per second for fast response. ValuPoint VP4-2310 also includes 3 analog outputs, 6 Form A relay outputs, and pulse counting capability on all inputs.
The ValuPoint® series of controllers is designed to be a building block in a distributed control system. The VP4-2310 can be used as Modbus slave for system expansion, or as Modbus master for stand-alone applications. When configured as Master, the VP4-2310 can query other Modbus devices, and use local registers to mirror mapped registers in remote devices.
Feature Highlights
• 14 Analog/Universal Inputs, 16-bit, Configurable as 0-10VDC, Thermistor, Dry • Contact, or Pulse
• 3 Analog Outputs, 8-bit, 0-20mA (or 4-20mA)
• 6 Discrete Outputs, Form A Dry Contact Relay, 2A @ 120VAC
• Modbus RTU 9600 to 38,400 Baud
• Graphical Programming with i.CanDrawIt®
