Description
LOYTEC NICs are the most universal network interfaces for CEA‑709 and IP‑852 (Ethernet/IP) channels. Based on LOYTEC’s Core Technologies, they offer high packet rates and short response times. All NICs are fully compatible with products like NL220, ALEX, LonMaker®, and other LNS® applications. The NICs are also compatible with NodeUtil32, NLUtil, OPC servers, and high performance ORION applications.
The multiplexed network interface (MNI) support allows starting multiple LNS® or MIP applications to run in parallel with an LPA on a single network interface. The built-in VPN function provides for simple VPN setup and secure access to remote sites.
Specifications

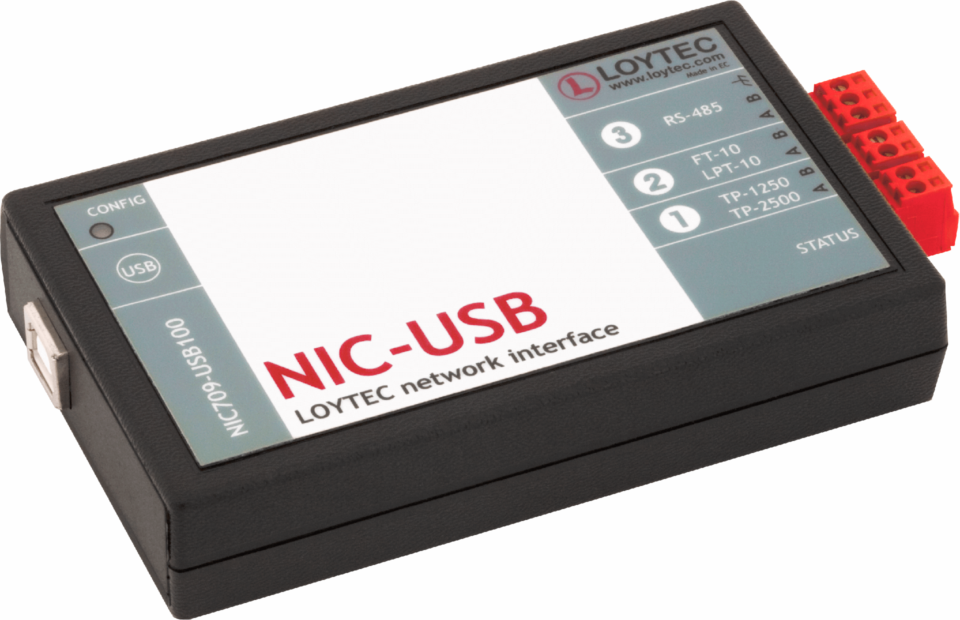

NIC709-USB100
Dimensions: (mm) 120 x 70 x 23 (L x W x H), DIM052
Power supply: Via USB, max. 130 mA
Operating conditions: 0 °C to 50 °C, 10–90 % RH, noncondensing, degree of protection: IP40, IP20 (terminals)
Interfaces: 1 x TP/FT‑10, 1 x TP/XF‑1250, 1 x RS‑485 (ANSI TIA/EIA‑485)
Tools: LOYTEC Network Interface NIC software
Operating system: Windows 10, Windows Server 2012, Windows Server 2016, Windows Server 2019
