Description
KNX – DAIKIN AC. SKY Air and VRV system

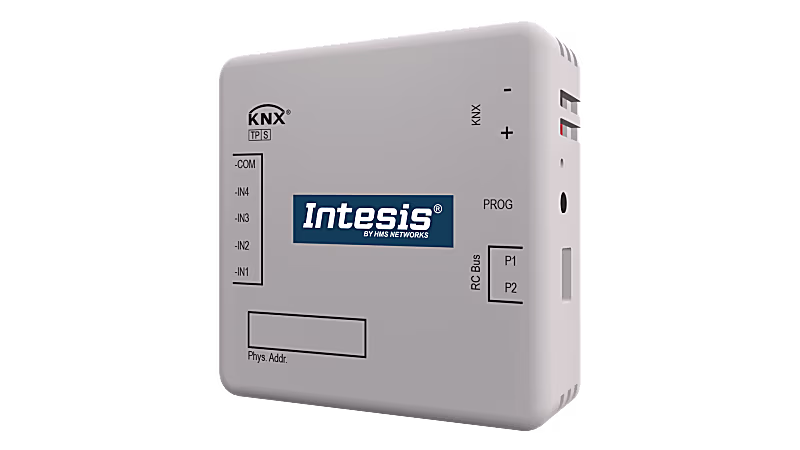

The Daikin-KNX INKNXDAI001R100 interface allows full bidirectional communication between Daikin VRV and Sky systems and KNX installations. It has four potential-free binary inputs to integrate external devices (such as window contacts or presence detectors), with the corresponding internal functions available to help improve energy efficiency.
Features and benefits
ETS configuration – The interface is configured using the ETS standard configuration tool software.
Compatible with all KNX thermostats in the market – All the required DPT objects to be compatible with all KNX thermostats in the market are available.
Multiple energy efficiency functions available – Timeout, open window, or occupancy energy-saving functions are available to reduce energy costs.
Smooth KNX thermostat integration – KNX thermostats are allowed to control the AC unit via the thermostat’s temperature sensor.
Total unit control and monitoring from KNX – Through internal variables, running hours counter (for maintenance purposes), and error indication.
Up to five scenes saved/executed from KNX – Up to five scenes can be saved and executed from KNX.
AC unit control by both remote controller and KNX – The AC unit can be simultaneously controlled by the manufacturer’s remote controller and KNX.
Compact dimensions, allowing inside installation – The interface can be quickly installed inside the AC unit thanks to its reduced dimensions.
