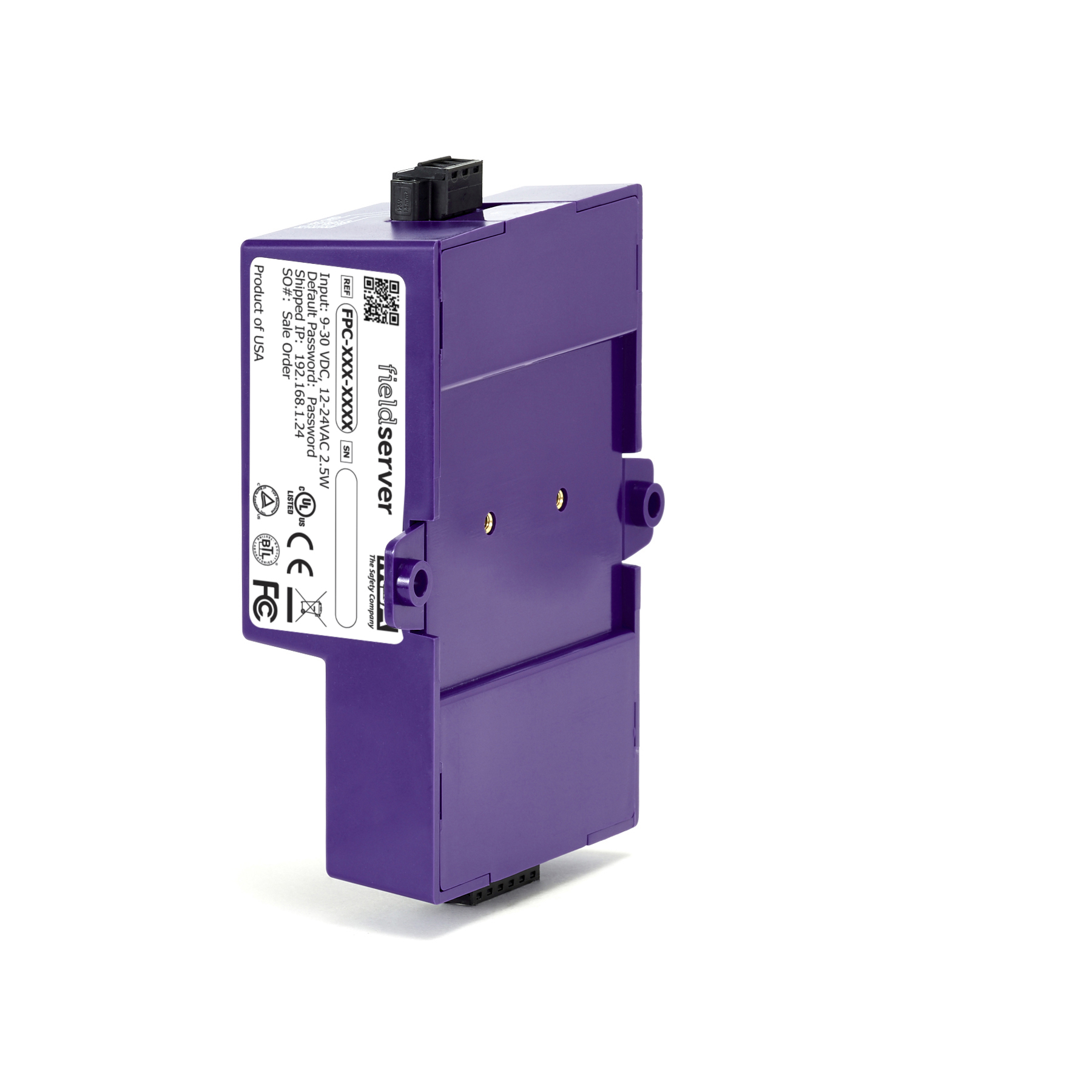

EZ Gateway KNX- BAC 500 points - FS-EZ1-KNX-BAC

Description

KNX-certified products encompass a wide range of applications such as lighting control, heating, ventilation and air conditioning control, shutter/blind and shading control, alarm monitoring, energy, gas, and water metering, and audio and video distribution. The FS-EZ1-KNX-BAC EZ Gateway KNX to BACnet integrates such KNX-based devices and systems to both flavors of BACnet-based management systems over BACnet MS/TP or BACnet/IP protocols. KNX to BACnet protocol translations include:

KNX to BACnet/IP
KNX to BACnet MS/TP

1. MSA GRID SUPPORT

• Register your EZ Gateway to the MSA Grid interface for remote access to local applications, configuration, and device management

2. KNX INTEROPERABILITY

• Connect with virtually any KNX-certified device out of the box
• ETS Support: Seamlessly import KNX Group addresses from ETS to lower commissioning time

3. BACNET COV

• Use the Change of Value (CoV) setting to reduce the amount of BACnet data overhead to allow network traffic to be less congested by transmitting data only when detecting a KNX device status has changed

4. DEVICEPROXY™

• Minimize management and operational costs with granular visibility and control over each KNX device from a BACnet management station

5. REMOTE ACCESS AND SUPPORT

• All FieldServer gateways come with Remote Access support. Once registerd to the MSA Grid, use the Remote Access capability to attach to the FieldServer gateway to monitor, maintain and troubleshoot installed equipment

Environment

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Relative Humidity: 5-90% RH non-condensing

Power Requirements

• 9-30 VDC or 12-24 VAC
• Current draw: @ 12V
  • FS-EZX-KNX-BAC: 240 mA

Enclosure

• Dimensions: 4.5 x 2.9 x 1.6 in. (11.5 x 7.4 x 4.1 cm)
• Weight: 0.4 lbs (0.2 Kg)

Other

• Configuration/Diagnostic utilities
• Table, wall, or DIN rail mount

Communication

• Baud: 9600
• Start Bit: 8
• Stop Bit: 1
• Parity: Odd
• Ethernet: 10/100 BaseT MDIX
