Description

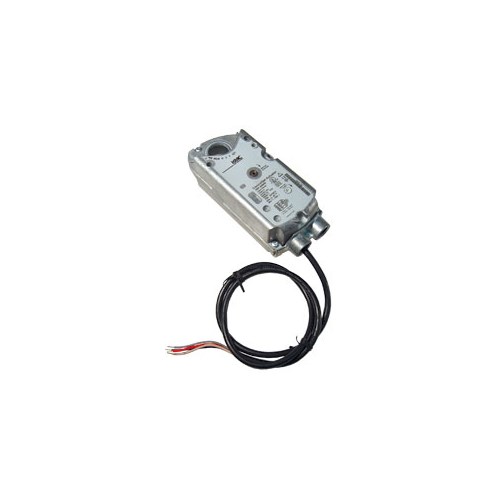

62″LB;0-10;SR;SW;PLNM;M166 MEP-425602
KMC MEP-425 series direct-coupled, spring-return actuators are designed to control small- and medium-sized dampers requiring fail-safe operation.
The MEP-425 Series actuators mount to 1/4″ to 3/4″ diameter shafts or 1/4″ to 1/2″ square shafts. The actuators produce 62 in-lbs. of torque, running and spring return minimum, over a maximum 95 rotation.
Two-position, tri-state, and 0 to 10 VDC models are available with pre-cabled wiring and integrated conduit adapter.
Specifications
| Actuator Type | Electric |
|---|---|
| Auxilary Switch | 2 |
| Brand | KMC Controls |
| Control Input | 0-10 VDC |
| Fail-Safe | Yes |
| Fail-Safe Type | Spring |
| Feedback | Voltage |
| Input Types | Proportional |
| Mounting | Shaft Coupling and Bracket |
| Normality (Fail) | Selectable |
| Power Supply | 24 VAC, 24 VDC |
| Selection Guide | Actuator-Only |
| Timing (sec) | 90 |
| Torque | 62 in-lb |
