Description
Multiprotocol I/O Module in a Compact Size with Built-in Light Applications

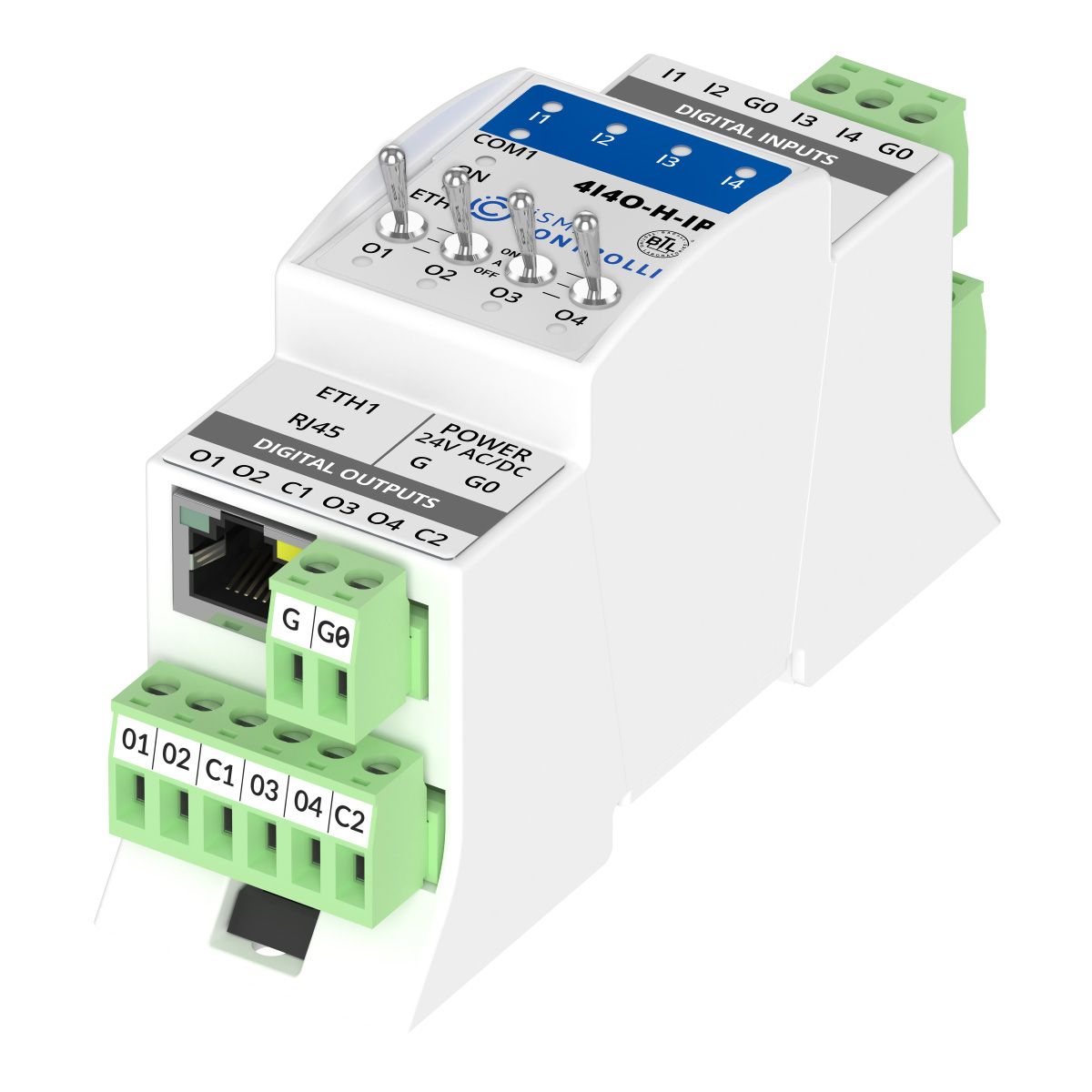

The iSMA-B-4I4O-H-IP is a powerful I/O module that works as a remote I/O over IP with open protocols, BACnet IP and Modbus TCP/IP. A compact size and ease of installation allow the module to be fitted even into limited space installations. The module is equipped with light applications that control the output based on the input measurement.
4 Digital Inputs
Dry contact inputs were made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the EEPROM memory.
4 Digital Outputs
Digital outputs equipped with normally open 3 A relays allow for a direct control without additional relays.
Manual Override Switches
Each output can be manually overridden using a dedicated hand operating switch.
Built-in Light Applications
Light control configurable algorithms make the module applicable as a standalone controller.
Modbus TCP/IP to Modbus RTU/ASCII Gateway
Built-in Modbus gateway on the COM1 port enables integration of up to 128 Modbus slave devices to the IP layer.
Simplified Configuration and Commissioning Process
The module allows for seamless configuration over BACnet, Modbus, built-in web server, or dedicated free of charge tool. The ability to be powered from a USB port facilitates local testing and a straightforward updating process.
Quality and Reliability Confirmed by Certificates
iSMA CONTROLLI is a long-standing member of the BACnet community. The experience in developing high quality products and the BTL (BACnet Test Laboratory) certification confirm the excellent performance of communication using the BACnet protocol.
Reliability of operation is confirmed by UL testing, certified by Underwriters Laboratories.
iSMA-B-4I4O-H-IP Technical Data
Hardware Specification
Ethernet interface
RS485 interface
mini USB type B interface
Status LED indicators
DIN rail mounted
8 I/Os onboard
Inputs
4 Digital Inputs (DI)
Dry contact inputs
Fast pulse counter up to 100 Hz saved in the EEPROM memory
Outputs
4 Digital Outputs (DO)
NO relay output
Resistive load max. 3 A @ 230 V AC / 30 V DC
Inductive load max. 75 VA @ 230 V AC / 30 W @ 30 V DC
Communication
BACnet IP
Modbus TCP/IP
Modbus TCP/IP to Modbus RTU/ASCII Gateway
Free software iSMA Configurator
Built-in web server
Dedicated Niagara Framework modules
Power Supply
24 V DC ± 20%
24 V AC ± 20%
