Description

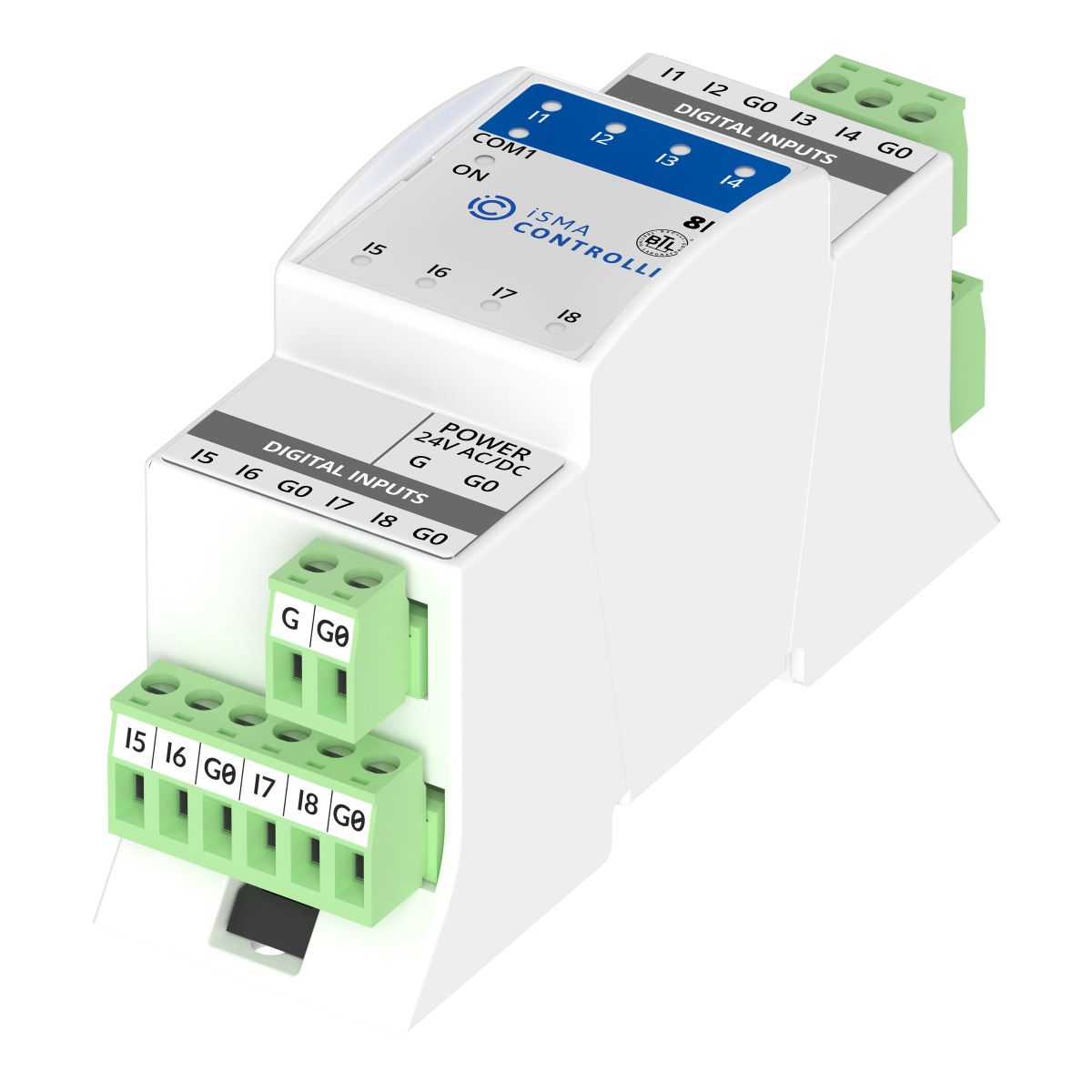

Multiprotocol I/O Module in a Compact Size
Powerful I/O module that works as a remote I/O over a serial port with open protocols, BACnet MS/TP and Modbus RTU/ASCII. The module is equipped with 8 digital inputs, which makes it a perfect monitoring device. A compact size and ease of installation allow the module to be fitted even into limited space installations.
8 Digital Inputs
Dry contact inputs were made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the EEPROM memory.
Simplified Configuration and Commissioning Process
The module allows for seamless configuration over BACnet, Modbus, or dedicated free of charge tool. The ability to be powered from a USB port facilitates local testing and a straightforward updating process, and the high-end RS485 transceiver allows up to 128 devices to communicate reliably with the client on a single bus.
Quality and Reliability Confirmed by Certificates
iSMA CONTROLLI is a long-standing member of the BACnet community. The experience in developing high quality products and the BTL (BACnet Test Laboratory) certification confirm the excellent performance of communication using the BACnet protocol.
Reliability of operation is confirmed by UL testing, certified by Underwriters Laboratories.
Technical Specification
Hardware Specification
RS485 interface
mini USB type B interface
Status LED indicators
DIN rail mounted
Inputs
8 Digital Inputs (DI)
Dry contact inputs
Fast pulse counter up to 100 Hz saved in the EEPROM memory
Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software iSMA Configurator
Dedicated Niagara Framework modules
Power Supply
24 V DC ± 20%
24 V AC ± 20%
